Concrete Shotcrete Pump – High-Quality Machinery for Seamless Construction
When it comes to building structures that stand the test of time, there is no other material that can match the strength and durability of concrete. However, in order to use this material for construction, it needs to be applied in the right fashion, which requires the right machinery. This is where our Concrete Shotcrete Pump comes into play. Our product is designed to provide a flawless solution for pumping concrete in the most efficient and cost-effective manner. In this product introduction, we will delve into the various aspects of our Concrete Shotcrete Pump that make it worthy of your investment.
Efficient Design
One of the key features of our Concrete Shotcrete Pump is its efficient design, which ensures that it can deliver concrete with ease and precision. We understand how important it is for construction workers to work with machinery that can keep up with their needs, which is why we have designed our pump to be streamlined and powerful. The smooth operation of the concrete pump allows for a more balanced and efficient work process, enabling workers to complete projects quicker and more efficiently.
High-Quality Performance
The Concrete Shotcrete Pump is designed to deliver high-quality performance that meets the needs of construction workers. It is capable of pumping concrete at a fast pace, allowing workers to pour concrete at a much quicker rate than traditional methods. This helps to reduce the amount of time and labor that is required to complete a project, leading to lower overall costs.
Versatile Applications
Our shotcrete pump has a wide range of applications, making it a versatile addition to construction sites. It can be used for small-scale projects like residential foundations, as well as large-scale projects like constructing bridges and tunnels. Our Concrete Shotcrete Pump can handle a variety of mixes of concrete, which makes it adaptable to the different types of construction projects that require concrete application.
Advanced Technology
Our Concrete Shotcrete Pump is made with advanced technology that allows it to achieve high precision and accuracy. We have included features such as the laser aiming system, which ensures that the pump delivers concrete to the exact spot where it is needed. The availability of a remote control system also adds to the accuracy of the shotcrete pump, as it allows workers to control the flow of concrete more efficiently from a safe distance.
Maintenance and Safety
Our Concrete Shotcrete Pump is designed with safety and maintenance in mind. The pump is built to withstand the harsh conditions of a construction site and requires minimal maintenance throughout its lifecycle. Additionally, all safety precautions have been taken into consideration and included in the design of our shotcrete pump. Our product is equipped with safety features such as alarms and safety switches that ensure a safe working environment.
Reliable After-Sales Support
Our customers are our top priority, and we understand that after-sales support is critical for ensuring customer satisfaction. We have established a reliable customer support system that is available to our customers round the clock. Our technical support team is highly trained and experienced in troubleshooting any issues that may arise with the Concrete Shotcrete Pump, thereby ensuring seamless operation and optimum performance.
Conclusion
Our Concrete Shotcrete Pump is designed to provide a high-quality and efficient solution for construction sites that require the application of concrete. Whether it is a residential foundation or a large-scale construction project, our pump is versatile to meet the needs of construction workers. With advanced technology, safety features, and reliable after-sales support, our Concrete Shotcrete Pump is the perfect addition to any construction site looking to reduce costs and increase efficiency.
Introduction

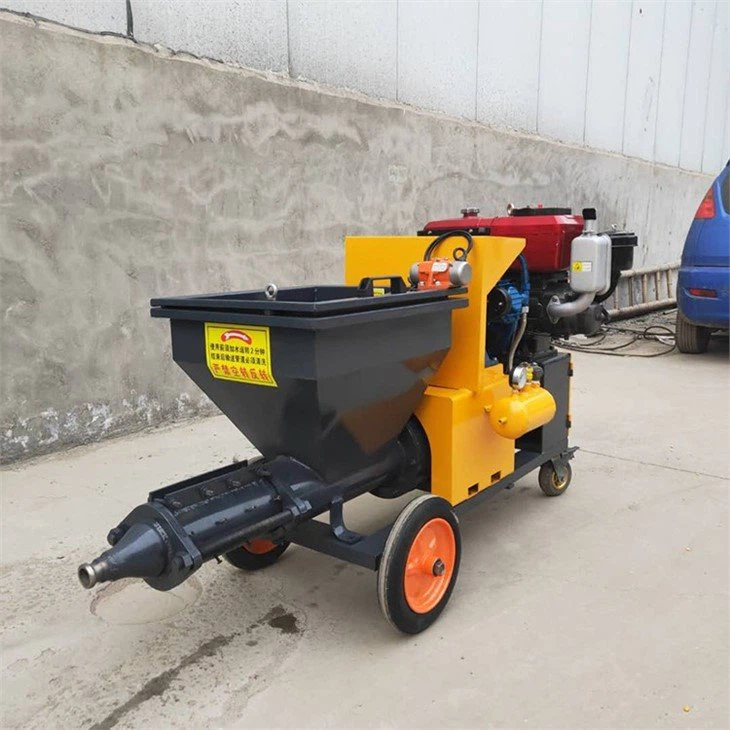

The concrete shotcrete pump can quickly spray the mixed concrete onto various construction surfaces through compressed air and other power, and is widely used in low-cost construction operations such as underground projects, hydropower projects and tunnels. It adopts hydraulic operation, with stable performance and long service life. The pump adopts rotor-type model with simple structure, small shape and easy maintenance.
Features
The horizontal delivery distance of the concrete shotcrete pump can theoretically reach 60 meters, and the vertical delivery distance can reach 30 meters, with a wide range of construction. It uses a high-power cooling fan to keep the machine at normal operating temperature. The humanized control panel allows a person to easily control various operations. It uses high load bearing tires, allowing it to move flexibly.
Main Technical Parameter | ||
Model | HBTS7-5-15 | |
Max. Theoretic Delivery Capacity | 7 m3/h | |
Max. Theoretic Working Pressure | 5 MPa | |
Delivery Cylinder( Bore× Stroke) | Ø120×360 mm | |
Main Oil Cylinder( Bore× Stroke) | Ø70× 360 mm | |
Type of Distributing Valve | S Valve | |
Feeding Hopper Capacity | 200 L | |
Capacity of Hydraulic Oil Tank | 30 L | |
Feeding Height | 700 mm | |
Diameter of Discharging Gate | Φ80 mm | |
Diameter of Delivery Pipe | Φ80 mm | |
Power | 15 kW, Electric Motor | |
Voltage | 380V, 50Hz, 3-Phase | |
Gear Pump Displacement | 40 mL/r | |
Max. Aggregate Size | 15 mm | |
Theoretical Delivery Distance | Vertical | 30 m |
Horizontal | 60 m | |
Total Weight | 520 kg | |
Overal Dimension (L×W×H) | 1700×650×1100 mm | |
About us
We have been committed to the design and development of concrete shotcrete pump for many years, integrating production, sales and service. We strictly manage the factory, grasp the management, and rely on technological transformation for development. Make sure you genuinely feel free to send us your requirements and we are going to respond for you as soon as possible.
Why choose us?
- Our factory has a skilled workforce with extensive experience in manufacturing Electric Concrete Pumps.
- We will enhance our core capabilities, strengthen the planning and layout of overseas business, expand domestic and foreign development space, and strengthen quality and efficiency.
- Our Electric Concrete Pumps are designed to reduce downtime and increase efficiency.
- We serve the cause of reform and development of the enterprise with the enterprise spirit of responsibility, commitment, aggressiveness and tolerance.
- Our products come with a user manual and instructions for safe handling and operation.
- We are committed to providing our customers with Concrete Shotcrete Pump of excellent quality, superior performance and perfect use experience.
- We provide detailed product specifications, technical data, and documentation to help customers make informed decisions.
- The attitude of taking every small step seriously and making all products extremely fine makes our final high-quality Concrete Shotcrete Pump highly recognized and well received by our customers.
- Our Electric Concrete Pumps are designed to minimize noise and vibration levels.
- We are steadily advancing the pace of innovation and development on a solid foundation, and strive to build an influential company.
